JUICE BOOSTER 2

Features

Find out why you should choose this charger

  • Remote access

    Remote access

  • App control

    App control

  • Residential & Business

    Residential & Business

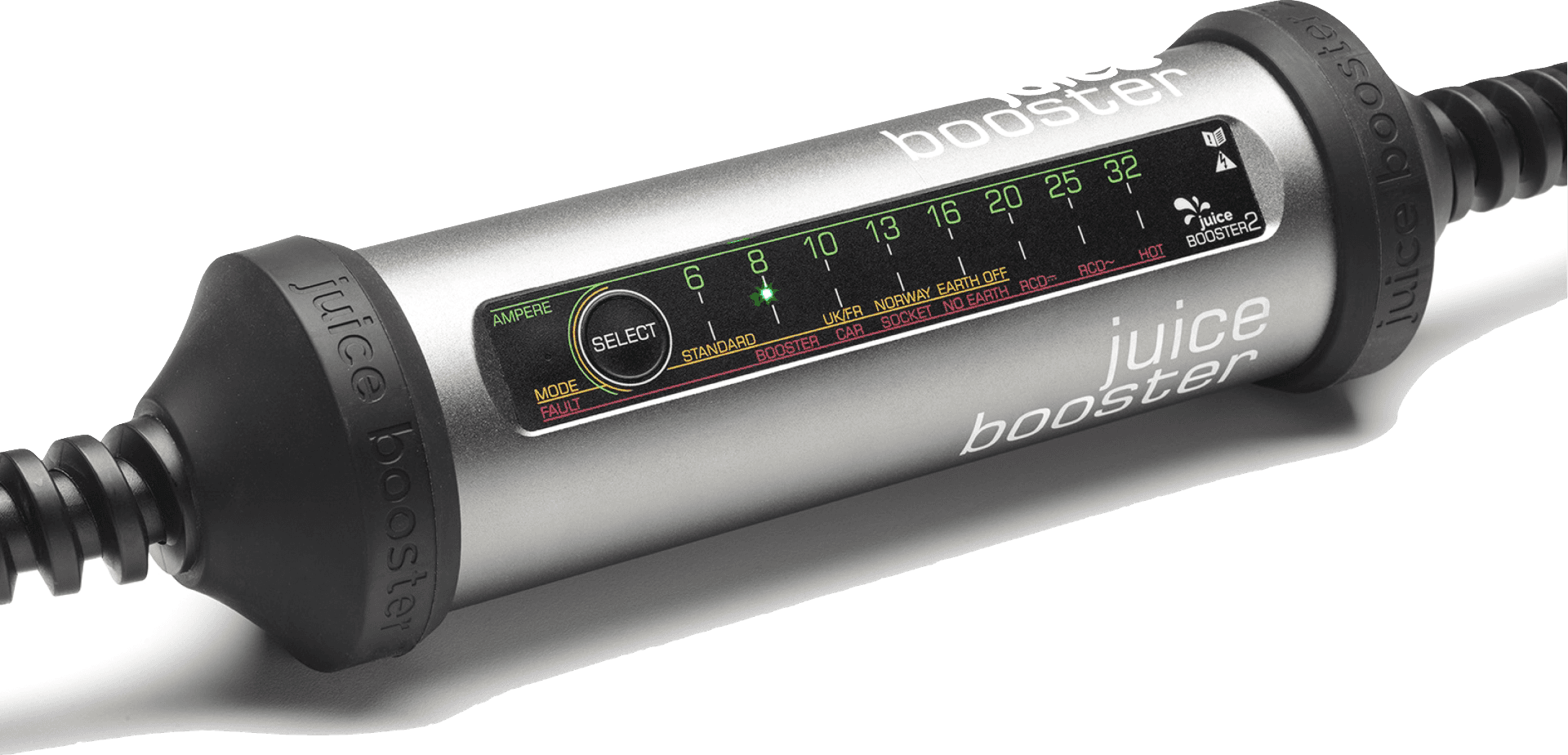

JUICE BOOSTER 2, the most versatile mobile charger in the world

JUICE BOOSTER 2, the most versatile mobile charger in the world

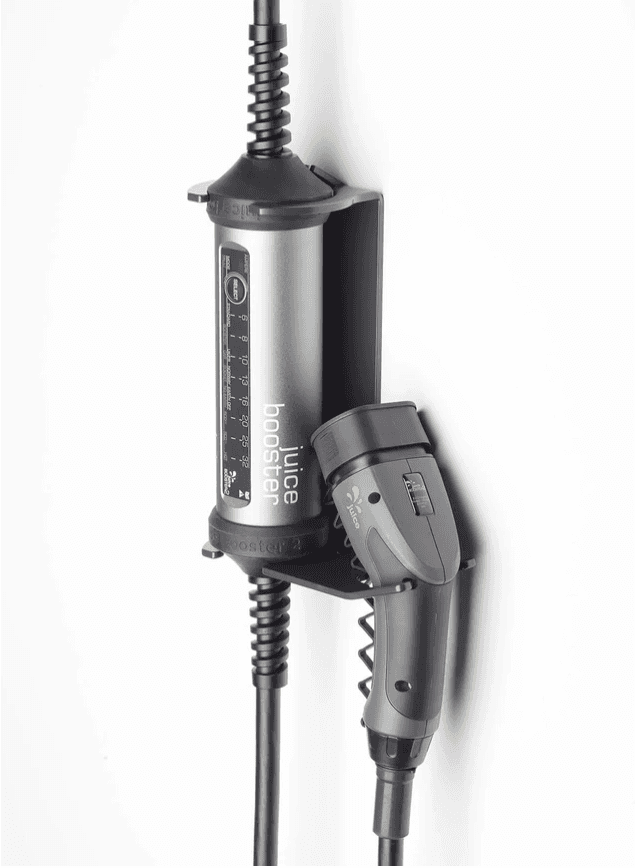

In addition to being used as a mobile charging station, the JUICE BOOSTER 2 can also be used as a wall box (with wall bracket) or type 2 cable (with type 2 adapter). The JUICE BOOSTER 2 can be connected to single or three-phase sockets and automatically set the limits for the maximum charging power it can deliver.

Technical specifications

Find out why you should choose this charger

    • Charging method Mode 2 and Mode 3
    • Charging category AC Charging
    • Vehicle connector/plug Type 2
    • Mains connector CEE 16A-32A/400 V 5P
    • Number of phases Supports Single and Three phases
    • Charging current 6-32 A
    • Charging power 1.4-22 kW AC
    • Frequency 50hz
    • Rated input voltage 400V
    • Protection 30mA AC and 6mA DC GFP
    • Energy meter Included
    • Dimensions Diameter 60mm, Length 225mm
    • Charging cable length 3.1 meters
    • Mains connection cable length 1.4 meters
    • Ingress protection IP67
    • Compliance IEC 61851-1, 62196, 62752 and EN 60335-1
    • Warranty 2 years
